Foundation Repair Abilene is a foundation repair contractor in Abilene, TX that provides crawl space repair for homes on the expansive clay across Abilene and Taylor County. Stabilizing and drying the crawl space of a pier-and-beam home with added or reset pier supports, structural wood repair, a ground vapor barrier, and moisture control.

What we do on the first visit

The first visit is a free on-site inspection, not a sales call. A technician runs a manometer floor-elevation survey referenced to a benchmark, documents the exterior and interior distress, enters the crawl space to inspect the piers, beams, and joists, and identifies whether the movement is settlement, heave, drainage, or a plumbing leak. You get a plain-language explanation on site and a written scope with a price range, usually within 2 to 3 business days of the call.

Moisture is the root cause under Abilene homes

Almost every crawl-space problem under an Abilene pier-and-beam home traces back to water. Surface water gets in from a roofline with no gutters, from grade that slopes toward the house, or from a flower bed holding moisture at the perimeter. Once it is under the house it has nowhere to go, the humidity climbs, and two things happen: the pad soil under the piers keeps swelling and shrinking, so the piers keep moving, and the wood framing sits above the moisture threshold where fungal decay starts, around 20 percent moisture content.

That is why the vapor barrier and the drainage are treated as structural work on these jobs, not as an add-on. Re-supporting a floor over a wet crawl space is a repair with a short life. The sequence that lasts: fix the water path first or alongside the structural work, put a continuous ground vapor barrier over the exposed soil, control the venting, and only then trust the leveling to hold.

Support strategy for an old floor system

The support work matches the age and construction of the house. Pre-1950 Abilene homes were often built with beam spans and joist sizes that were adequate then and are marginal now, especially after decades of load and movement.

• Added piers shorten unsupported spans. Putting an intermediate pier under a long beam run cuts the sag and stops it returning. This is often more effective than trying to jack an undersized beam back straight.

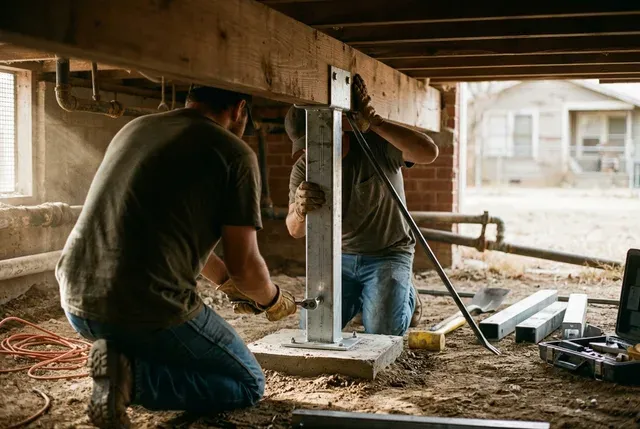

• Adjustable steel supports are used where the floor may need fine-tuning later as the clay keeps moving. They can be turned up a fraction without disturbing anything.
• Fixed concrete pad-and-pier is simple and durable where the soil is stable and the load is predictable.

The crew re-shims the whole system to a manometer survey after the supports are set, so the floor is corrected to a documented tolerance, not just “close enough.”

What a healthy crawl space looks like

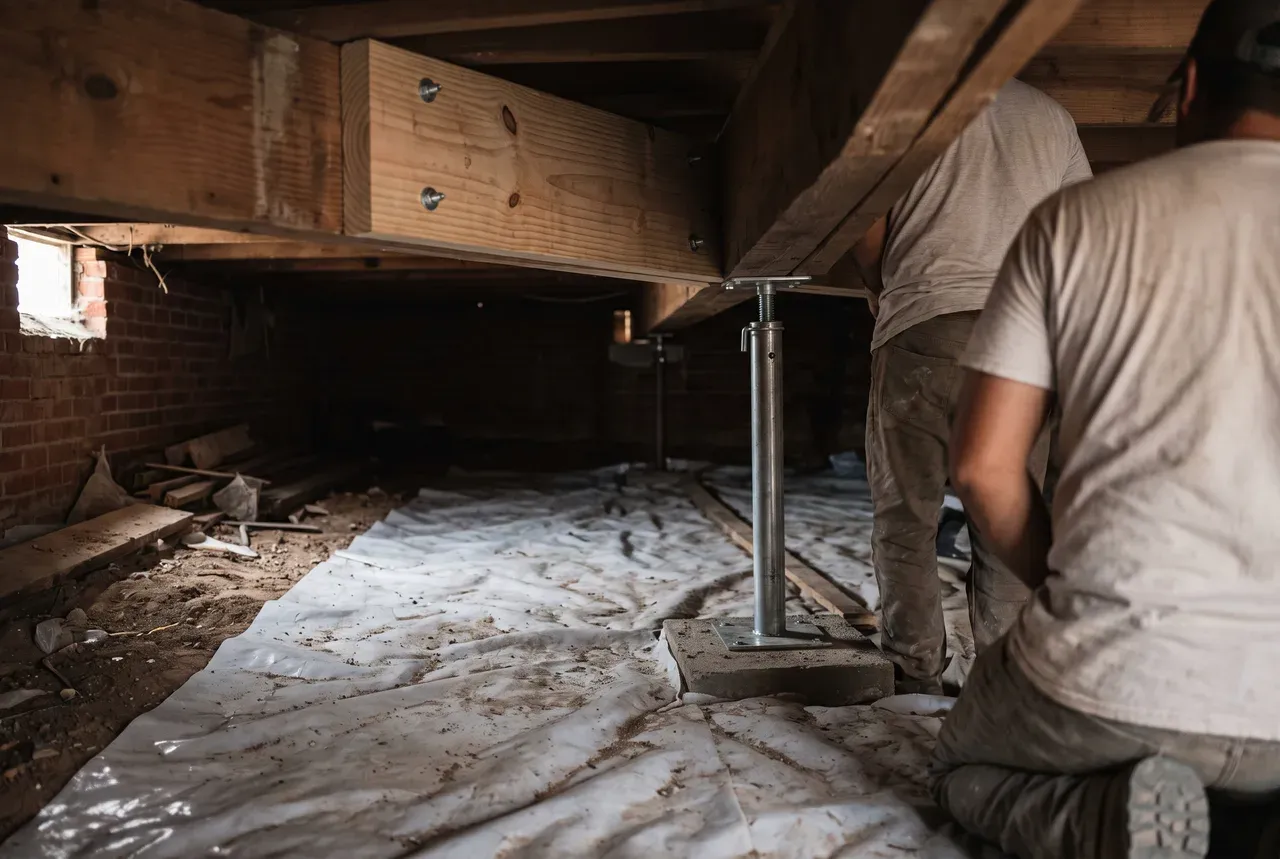

When the work is done, a healthy Abilene crawl space has a few consistent features: the soil is graded so no water pools and is covered edge to edge with a sealed vapor barrier; the framing is sound, dry, and continuously supported with no beams touching the ground; the piers are plumb and bearing evenly; and the venting is controlled rather than left wide open to humid summer air or blocked entirely.

Maintenance is light after that. Keep the gutters clear and the downspouts extended, check the barrier once a year for tears, and look for standing water after a heavy storm. A dry, barriered crawl space also cuts the humidity and air leakage that make floors feel cold and make the HVAC work harder, which is a real but secondary benefit, not the reason to do the work.

Insurance and payment

Long-term moisture damage and decay are excluded on standard Texas policies. A sudden covered leak that flooded the crawl space can be a claim trigger for the water damage, though not for pre-existing sag.

Standard Texas homeowners policies exclude foundation movement caused by expansive soil. Where a covered event is involved — most often a plumbing leak under a slab — we document the cause with photos and, on older homes, a static hydrostatic test, so an adjuster has what they need. We also work with third-party financing for larger scopes; ask at the inspection.

What's included

• Full crawl-space inspection of piers, beams, joists, sill plates, and subfloor
• Added or reset pier supports under sagging or unsupported spans

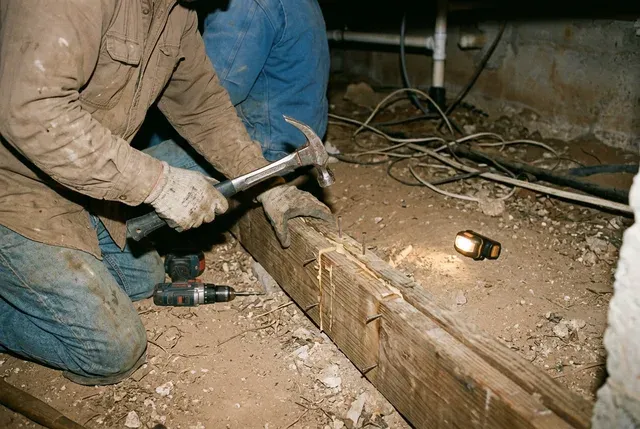

• Sistering or replacement of decayed or split joists and beams

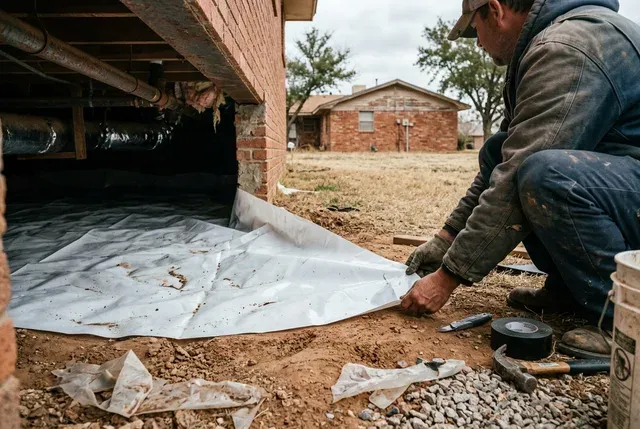

• Ground vapor barrier over the exposed soil to cut humidity

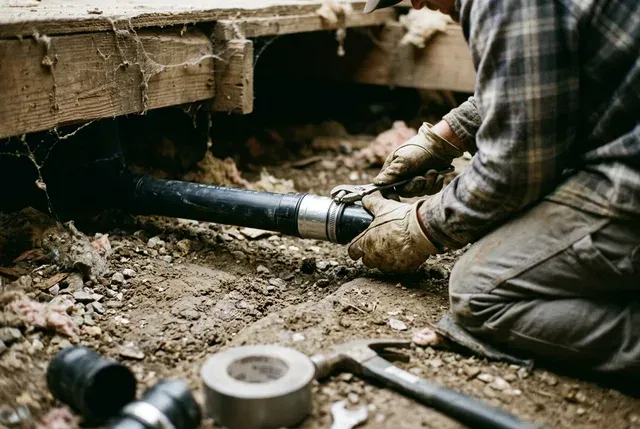

• Interior drain or sump where water enters the crawl space
• Vent and access-door repair to control airflow and pests
• Removal of construction debris and old cellulose that holds moisture
• A floor-level re-survey and a written record of every member and support
